Terracotta Amphorae Manufacturing Process—A Complete Guide
Based on nearly 50 years of experience in terracotta making at Hexin Ceramics, the production of terracotta amphorae can be divided into nine technological steps. This is a systematic process, including preliminary preparation, mold making, selection of suitable materials, and adherence to a complete set of procedures.
In this guide the intricate journey from raw clay to finished terracotta amphora providing winemakers and enthusiasts with the knowledge needed to make informed decisions when sourcing these traditional vessels.
What Is a Terracotta Amphorae?
Terracotta Amphorae are earthenware containers used for winemaking and aging. In ancient times, terracotta amphorae served primarily as transport and storage tools, used for storing liquids such as wine and olive oil, as well as dry grains.
Today, however, modern amphora have become the ideal fermentation vessel for professional winemakers in winemaking and aging. Compared to oak barrels and stainless steel containers, wines made in clay amphora tend to have a purer flavor and better express the terroir.

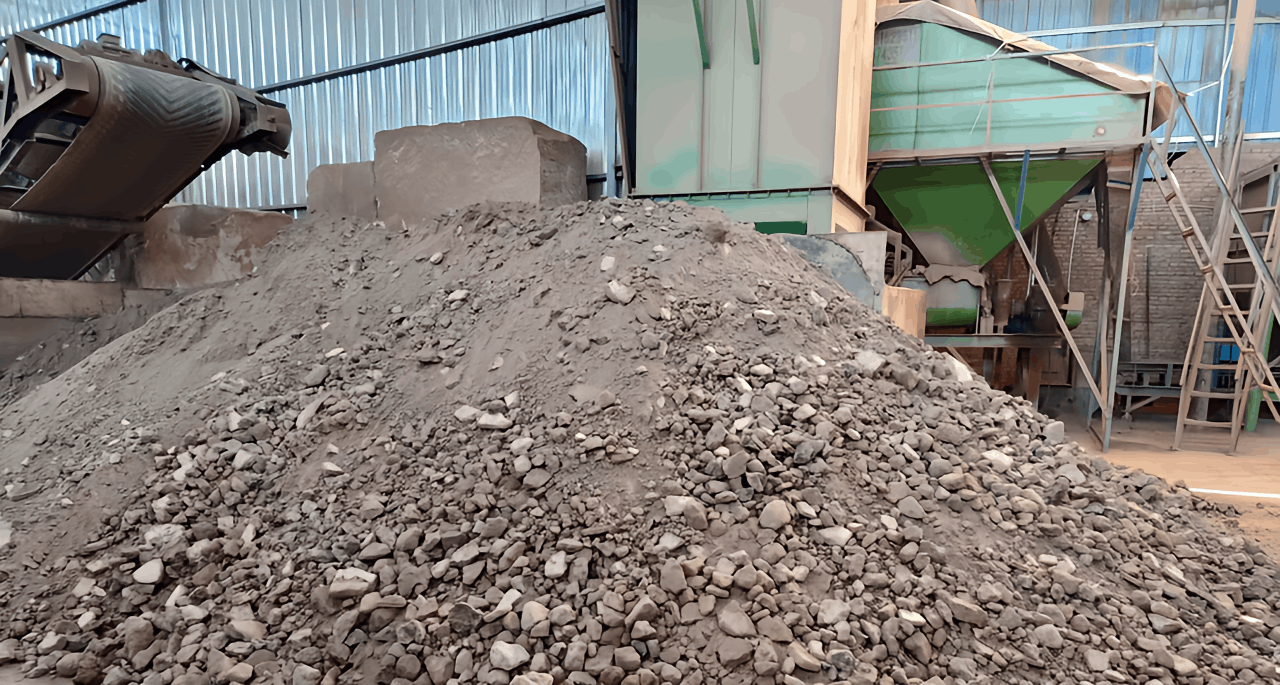

Step 1: Terracotta Amphorae making Materials
Clay is the fundamental material for making amphoras, and Chinese amphora manufacturers have mastered the techniques for selecting and preparing clay that meets the stringent standards required for brewing applications.
Every exceptional amphora begins with its fundamental component—the clay itself. Chinese manufacturers have mastered the art of selecting and preparing terracotta clays that meet exacting standards for winemaking applications.
The shaping of terracotta amphorae combines ancient methods with modern precision, creating vessels that honor tradition while meeting contemporary quality standards.
1.Clay Sourcing and Analysis
● Geological surveys identifying optimal clay deposits
● Historical research into traditional clay sources
● Environmental assessment ensuring sustainable harvesting
2.Material Preparation
The transformation of raw clay into workable material involves:
● Natural aging processes that improve clay plasticity
● Stones and impurities are removed by ball milling.
● Custom blending of different clays for specific properties
● Moisture balancing achieving perfect consistency for shaping
Step 2: Terracotta Amphorae Mud Making Process
Formed clay blocks are essential materials for making amphora pottery. The following four steps of the clay-making process comprehensively describe the relevant workflow:
1. Clay Selection And Weathering
The natural clay material used to make terracotta amphoras is exposed to the natural environment to “weather,” which aims to break down the clay’s structure and thus improve its plasticity and workability.
2. Maturation And Purification
The weathered clay is soaked in water to mature, dissolving it into a slurry. The slurry is then passed through a fine sieve to remove coarse impurities such as stones and organic matter.
3. Mixing And Blending
The purified slurry is dehydrated to a suitable consistency. During this process, specific materials are added to the clay for blending, aiming to reduce shrinkage and improve thermal stability, thus preventing the clay from cracking during drying and firing.
4. Aging Process
The aging process allows organic matter to ferment, ultimately forming a more plastic, uniform material that is easier for artisans to shape on a shaping machine.

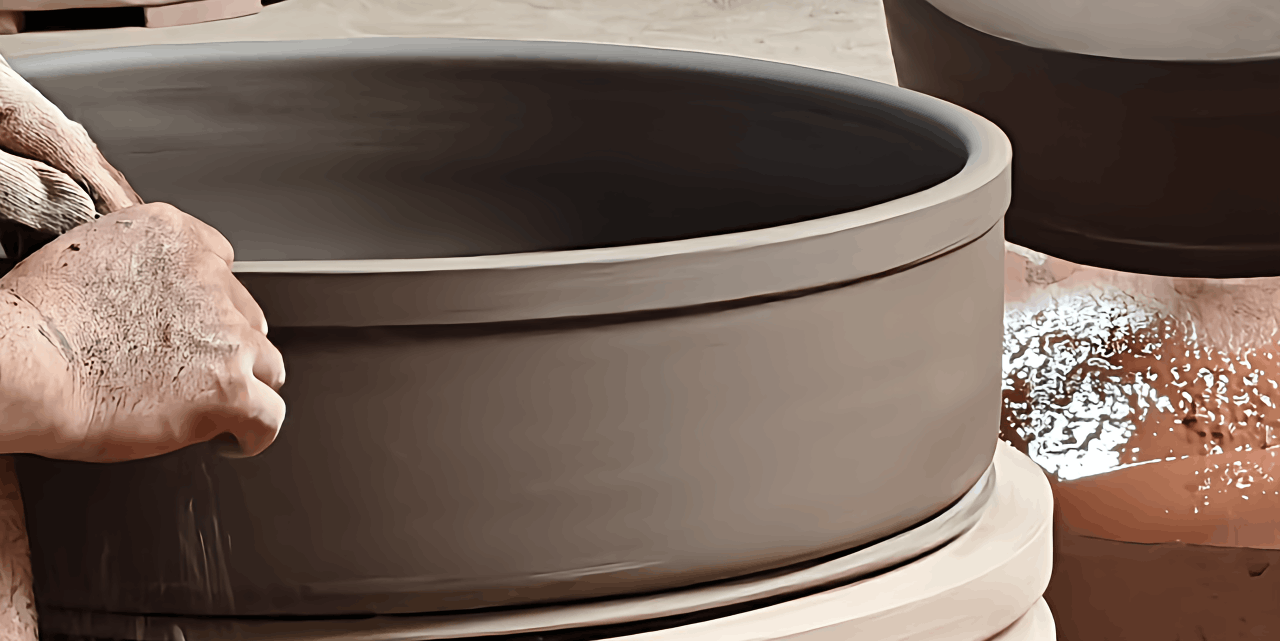

Step 3：Terracotta Amphorae Body Manufacturing
Clay forming is the core process that shapes the clay amphora from shapeless to tangible. It determines the vessel’s basic form, uniform thickness, and structural strength, laying the foundation for its final quality.
This step requires craftsmen to deeply understand the properties of clay and master a range of molding techniques.
Therefore, the terracotta amphorae of a two-eared vase mainly follows these key steps:
1. Clay Kneading
The prepared clay needs to be repeatedly and thoroughly kneaded by the craftsman to eliminate internal air bubbles and ensure uniform hardness and density. This step is fundamental to preventing cracking and deformation during subsequent drying or firing.
2. Terracotta Amphorae Bad Body Making
● The craftsman places the kneaded clay in the center of the potter’s wheel and, through the coordinated action of his hand, wrist, and arm, pulls it into the pre-set shape of the amphora while rotating it.
● During this process, the craftsman needs to precisely control the rotation speed and force to form the main body and curvature of the vessel.
3. Shaping
● The shaping process involves the craftsman meticulously polishing the amphora. During this process, craftsmen use scrapers and thin sheets to refine the curves, rim, and base of the clay amphora, ensuring smooth lines and uniform thickness.
● At this point, a complete terracotta amphora is finished, ready for subsequent drying and firing.
Step 4: Terracotta Amphorae Body Repair
● Finishing is a crucial step in the artisan’s meticulous refining of the clay already shaped on the potter’s wheel.
● Its purpose is to precisely control the final shape, thickness, and weight of the terracotta amphora, as well as to create smooth and perfect lines.
● The professional finishing process follows a strict sequence and standard:
1. Timing
● After the clay amphora is formed by throwing, it is placed in a cool and well-ventilated area.
● Once the natural air-drying process is completed, the craftsman can start trimming the body.
● This entire process (from air-drying to trimming preparation) takes 7 days or even longer.
2. Fixing The Body
● The greenware body is placed upside down or upright on the pottery wheel, and is usually positioned and secured using plaster molds or specialized clamps.
● This ensures that the rotation center of the greenware body is aligned with the axis of the pottery wheel, which is a prerequisite for achieving uniform and precise trimming.
3. Rough Shaping
● The craftsman uses sharp tools and, with the help of the rotating pottery wheel, removes the excess clay from the bottom and top of the greenware body.
● This process initially defines the contour curves, the height and shape of the foot ring, and eliminates any marks left during the throwing process.

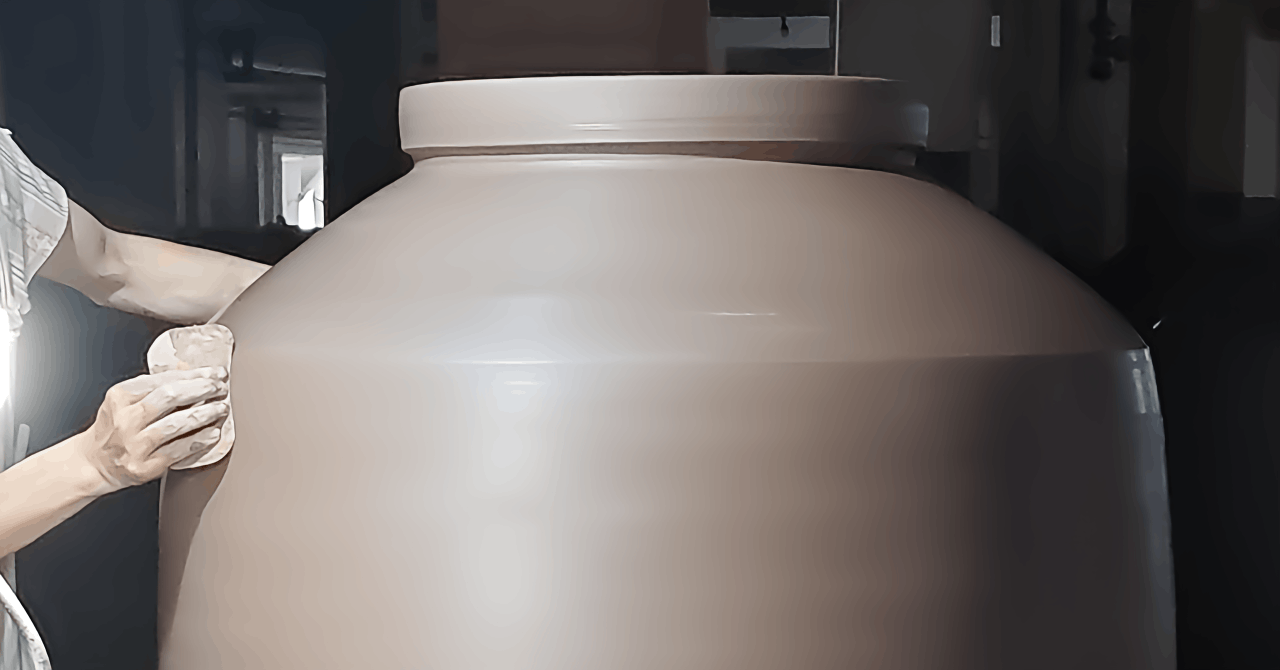

4. Refined Terracotta Amphorae
● Fine polishing is carried out using smaller and sharper precision trimming tools.
● At this stage, it is necessary to precisely control the thickness of each part of the vessel to ensure uniformity, and carefully refine the lines of the rim, neck rim and foot ring.
● Finally, a scraper or sponge is used to polish the surface of the terracotta amphora, making it smooth and flat.

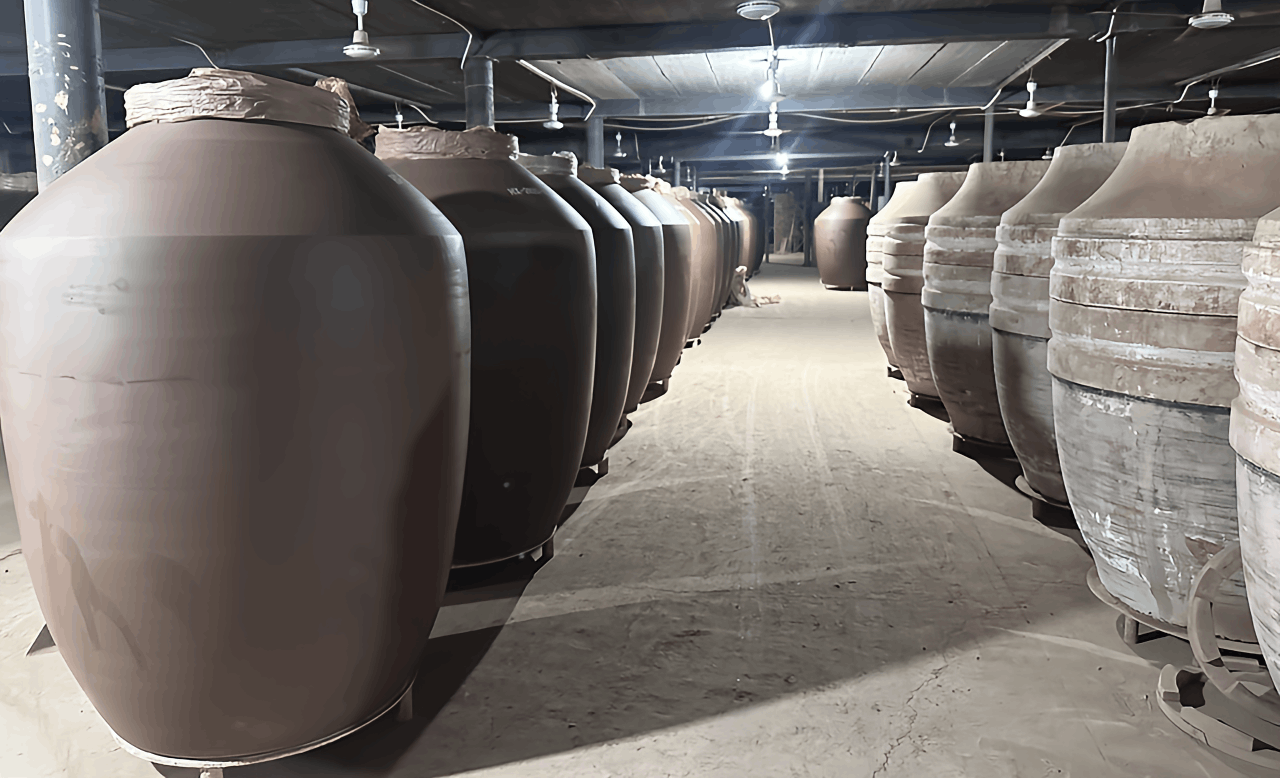

Step 5：Terracotta Amphorae Nature Drying
● Natural drying is a crucial stage for the physical solidification of terracotta amphora.
● This process involves precise control and slow dehydration, aiming to achieve uniform shrinkage of the clay amphorae and prevent the formation of defects. Therefore, it follows the following workflow:
1.Initial Shade Drying
Craftsmen place the finished clay amphorae in a naturally ventilated drying room, where the natural physical process of removing moisture from the vessel walls takes place.
2. Mid-term Ventilation Drying
After the greenware body attains a certain level of overall strength, the formed terracotta amphora are moved to a well-ventilated environment. Natural air flow is used to gently and evenly accelerate the removal of moisture.
3. Final Thorough Drying
After natural air drying, the amphoras are transferred to a sealed drying room for further drying. The temperature in the drying room is typically around 50°C, a process that completely removes moisture.

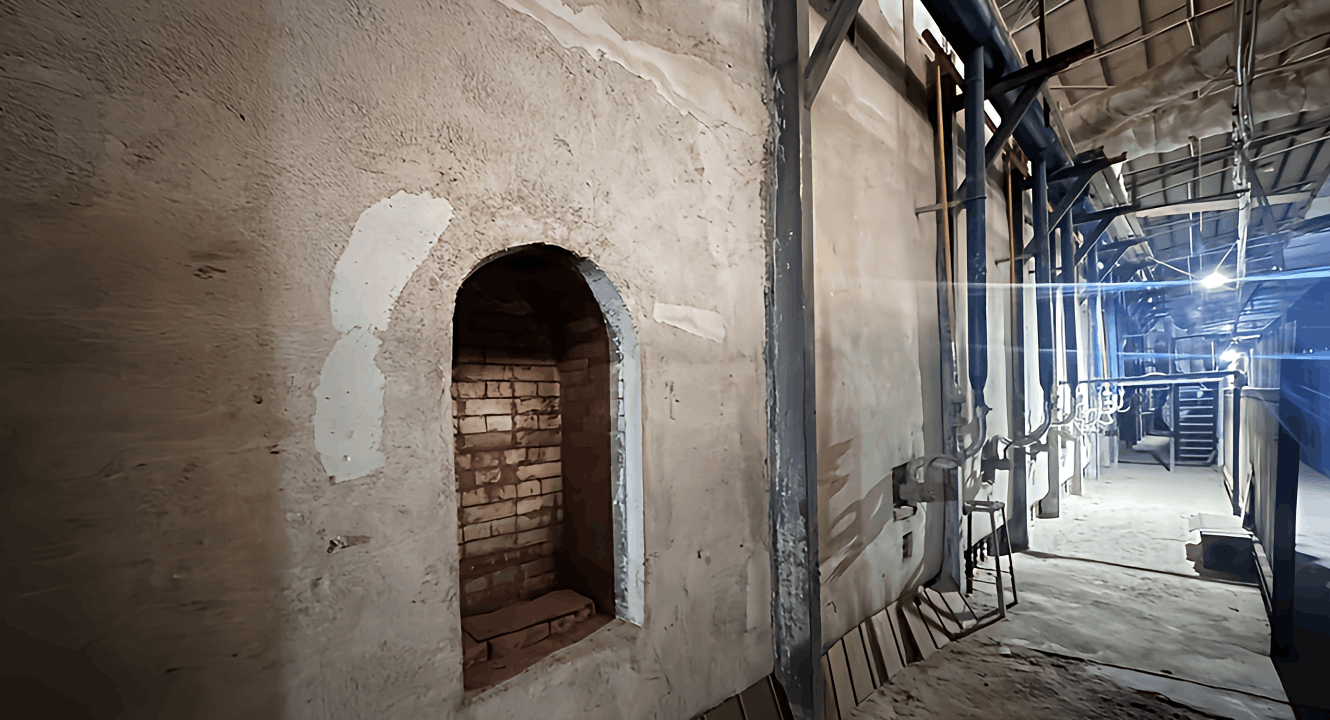

Step 6：Terracotta Amphorae Tunnel Kiln Firing
● Tunnel kiln firing is a core technology in the modern ceramic industry, providing a continuous, stable, and controllable high-temperature heat treatment solution for terracotta amphora.
● In essence, it is a long-term thermal system that operates in the reverse direction of the greenware bodies. Through precise control of the temperature curve, it achieves the vitrification and sintering of the greenware bodies.
● The entire firing process is completed continuously in different areas of the kiln and can be divided into three major stages:
1. Preheating And Cleaning
The greenware body is slowly heated up in the preheating zone, aiming to completely remove residual moisture and organic impurities, thus laying a foundation for the subsequent high-temperature sintering.
2. High Temperature Sintering
In the core high-temperature zone of the kiln, the greenware body is sintered at a temperature of 1100°C-1250°C. The flux forms a glassy phase, which enables the densification of the greenware body, thereby achieving the final strength and hardness.
3. Controlled Cooling
● and then slow. This measure aims to stabilize the quartz crystal form and prevent cracking, ensuring the product is removed from the kiln intact.
● Through this zoned control, the tunnel kiln enables the simultaneous execution of kiln loading, preheating, firing, cooling, and kiln unloading processes, significantly improving both the production efficiency of clay amphorae and the consistency of the products.

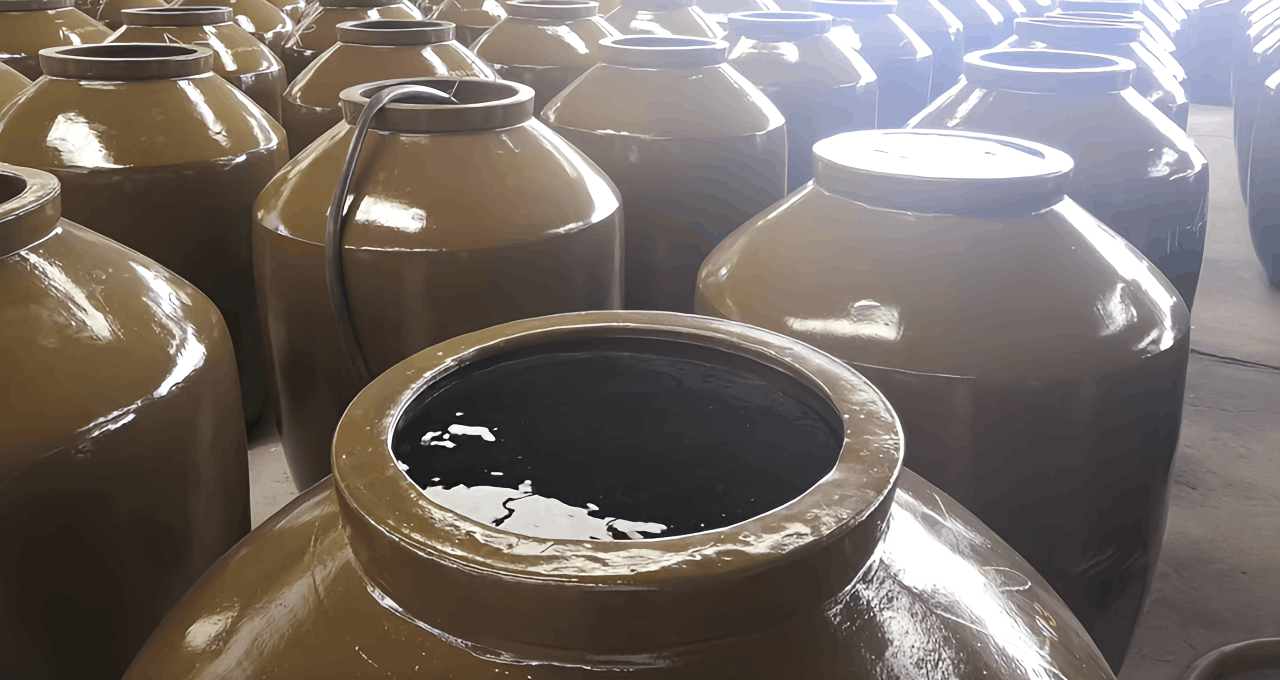

Step 7: Quality Assurance &Testing
Rigorous quality control measures ensure every amphora meets the demanding standards of professional winemaking.
1. Structural Integrity Testing
● Craftsmen carefully examine every part of the amphora by shining strong light at an angle, ensuring there are no hairline cracks, hidden cracks, or bumps.
● Secondly, they gently tap the wall of the amphora and judge whether there are hidden internal damages based on the clear or dull echo.
2. Shape And Dimension Inspection
● Tools such as calipers are used to measure key dimensions including total height, belly diameter, and mouth diameter, ensuring compliance with design tolerances.
● Focus is placed on inspecting the symmetry, stability of the center of gravity, and the flatness of the rim and base to ensure its dignified and upright appearance.
3. Surface Texture And Color Inspection
● The craftsman mainly checks whether the surface of the greenware body is smooth, even, and has a warm and smooth touch.
● Inspectors check for obvious defects such as impurities, clay bursts, bulges, or color differences, smoke stains, and fire marks caused by uneven firing.
● The natural color of the clay itself and the fire marks should be natural and harmonious.
4. Judgment of Sintering Degree
● The sintering density is objectively determined by testing the water absorption rate.
● A high-quality unglazed clay amphora should be fully sintered, with a low water absorption rate, and produce a clear and prolonged sound when tapped. This ensures it has sufficient strength and water resistance.
FAQ: Addressing Manufacturer Concerns
1. What quality certifications should I look for in terracotta amphora manufacturers?
Reputable manufacturers hold ISO 9001 quality management certification, food safety compliance documentation (FDA/EC1935 standards), and material safety data sheets. Many also provide independent laboratory analysis reports for each clay batch.
2. How do Chinese manufacturers ensure consistency across multiple amphorae?
Through standardized material processing, computer-controlled drying and firing cycles, rigorous quality control checkpoints, and statistical process control monitoring. While handmade elements create slight variations, critical performance characteristics remain consistent.
3. What is the typical production timeline for custom orders?
Standard production requires 10-12 weeks: clay preparation (1-2 weeks), formation (2-3 weeks), drying (3-4 weeks), firing and cooling (2 weeks), quality testing and packaging (1 week). Complex custom designs may require additional time.
4. How do manufacturers test amphorae for wine compatibility?
Advanced testing includes pH stability tests, mineral leaching analysis, microbial safety verification, and actual wine trials. Many manufacturers maintain test vineyards and winemaking facilities for product validation.
5. What shipping and packaging methods protect amphorae during transport?
Professional manufacturers use custom-designed foam molds, wooden crates, and shock-absorbent packaging systems. Most offer container-load optimization services and insurance options for international shipping.
Conclusion
Understanding the terracotta amphora manufacturing process empowers winemakers to select vessels that will enhance their wine quality and reflect their commitment to excellence. The journey from raw clay to finished amphora involves numerous critical stages where expertise makes the difference between ordinary and extraordinary results.
Chinese manufacturers offer a compelling combination of traditional craftsmanship, modern technology, quality assurance, and global logistics,making them ideal partners for wineries seeking to incorporate these ancient vessels into their modern winemaking programs.
By choosing manufacturers who demonstrate expertise at every production stage, winemakers can acquire amphorae that not only honor ancient traditions but also deliver consistent performance and contribute to creating wines of distinctive character and quality.
